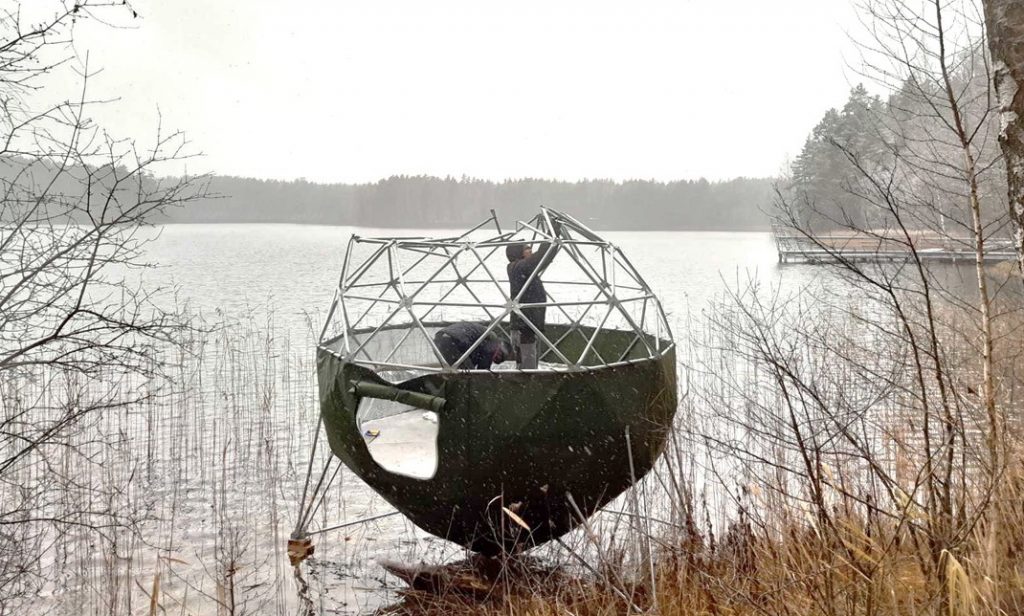

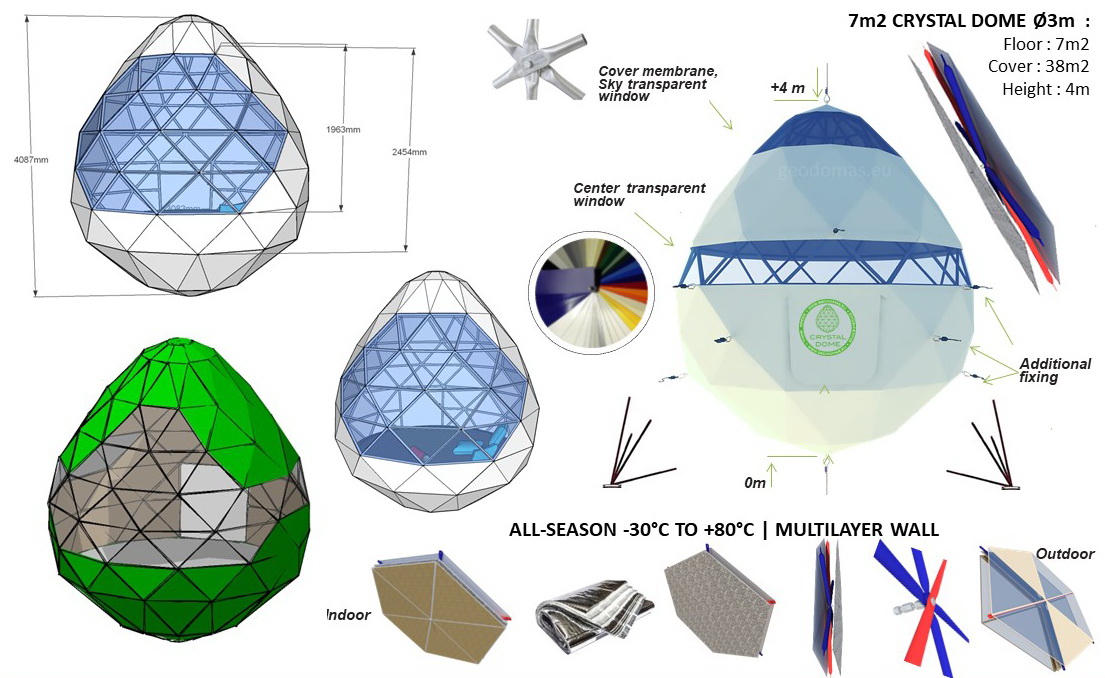

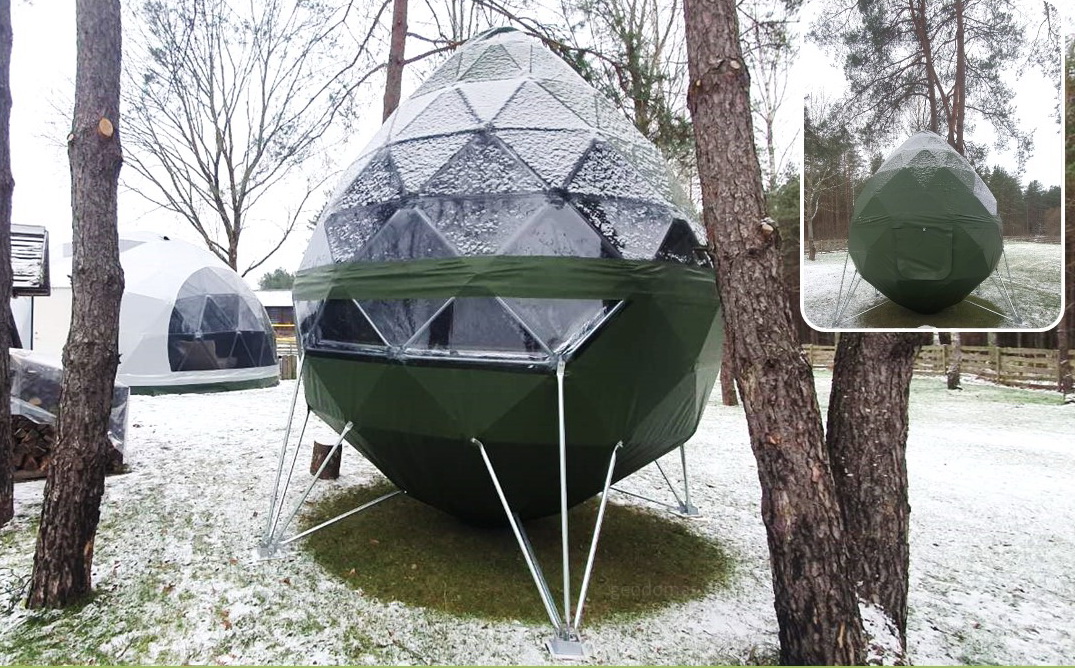

7m2 CRYSTAL DOME Ø3m H4m | BASIC SET

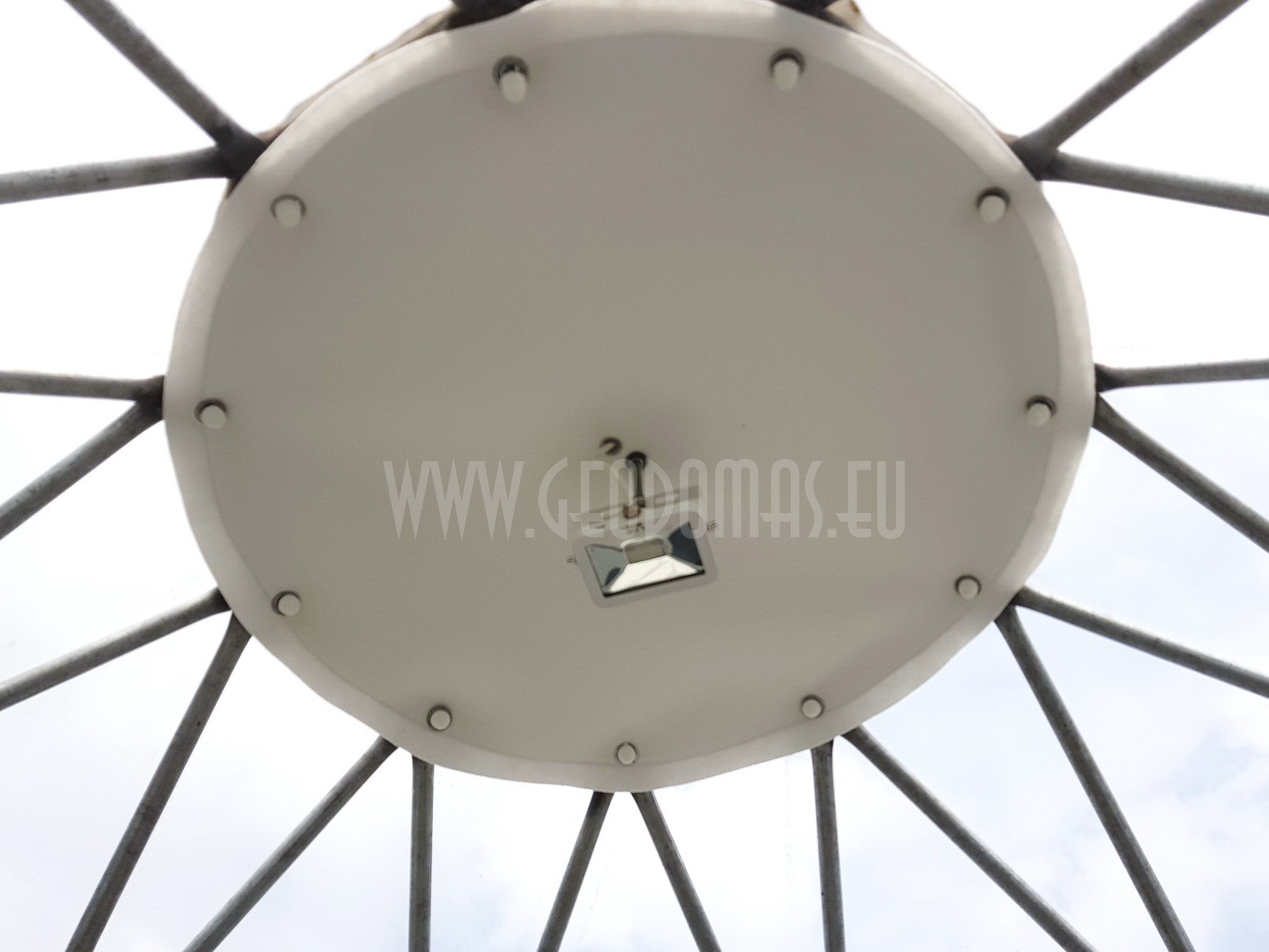

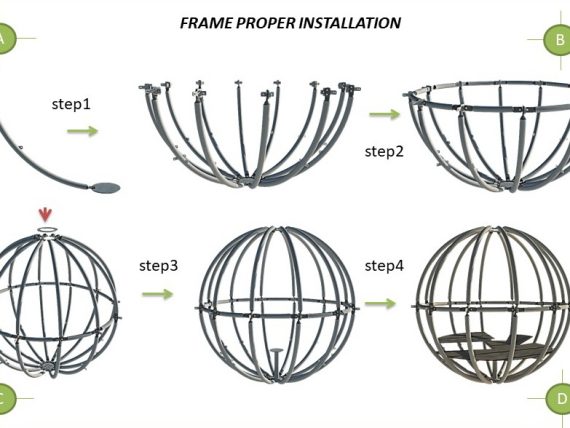

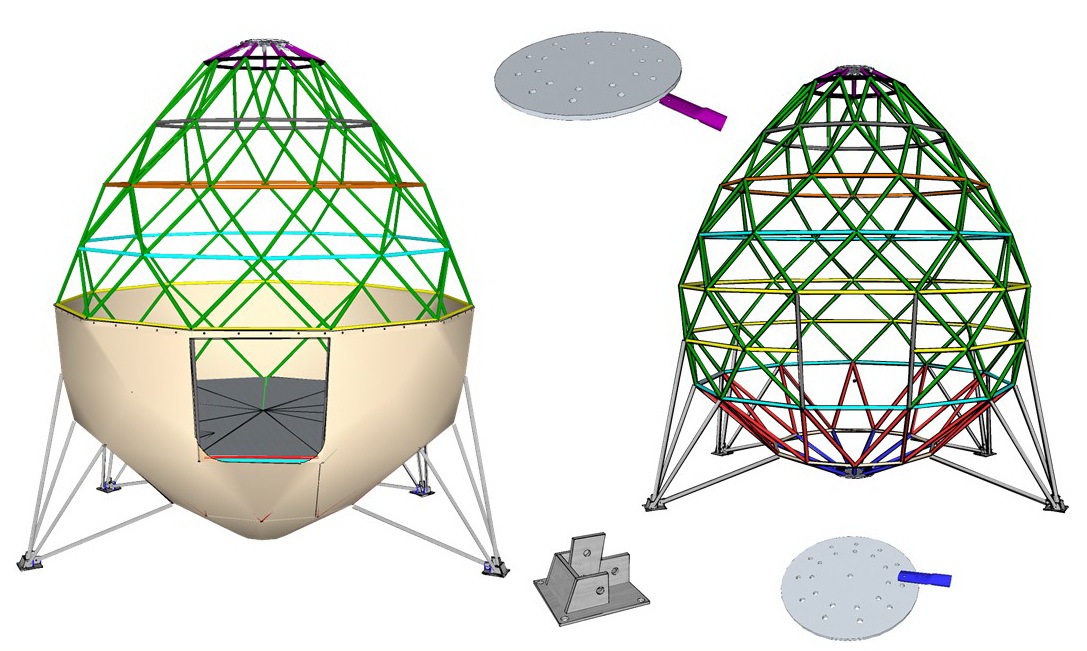

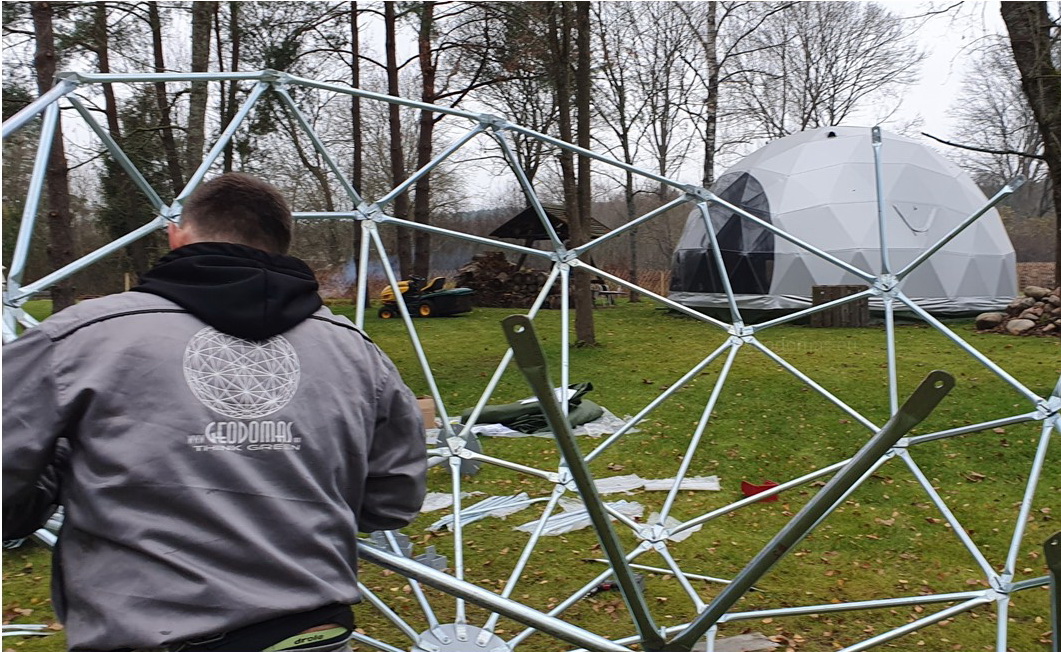

◦FRAME: frame, galvanized steel elements, single screw connections, lower and upper connections. External fastenings for cables 10pcs

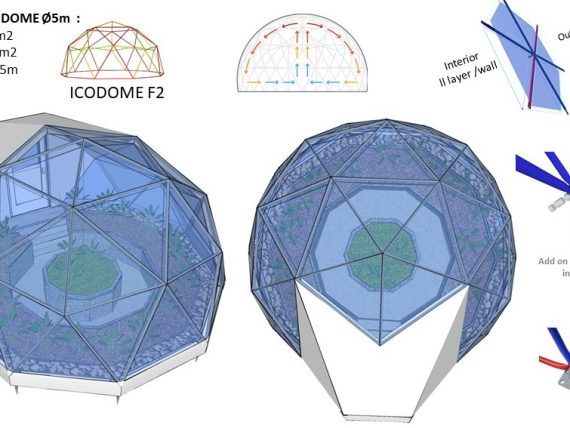

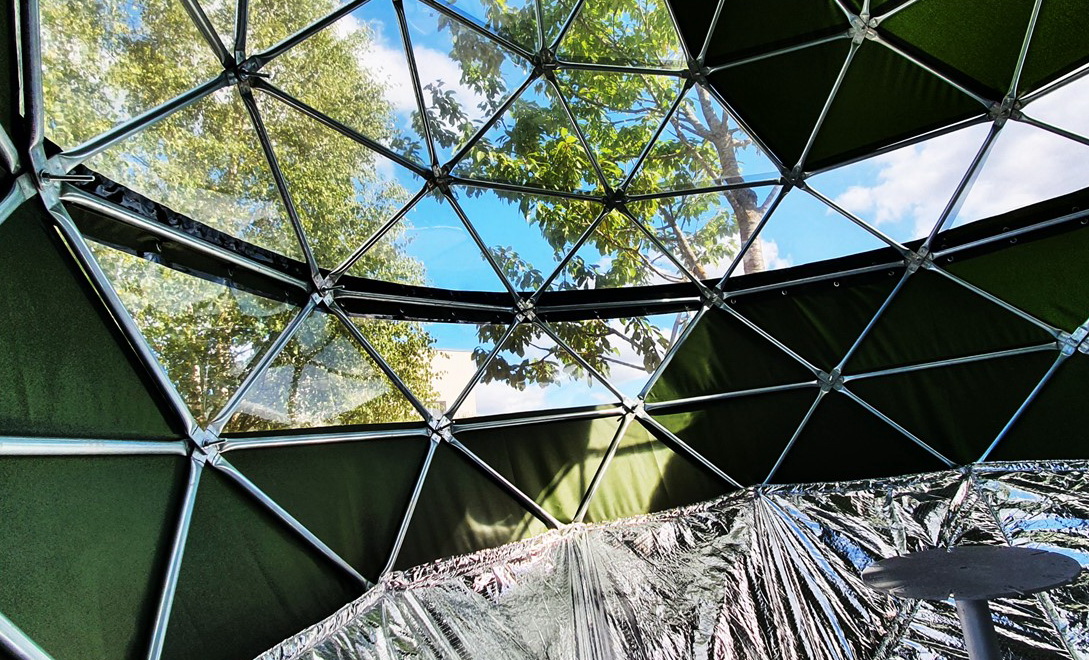

The geodesic dome structure allows you to create a light, well protected and very stable space. The main advantage of geodesic domes is the even distribution of stresses in all frame nodes.
Each geodesic dome structure is designed according to load calculations. This in turn ensures safety and durability. Our structural engineers can calculate the maximum loads of the equipment suspended by the geodesic dome of regional norms

Dome covering, plastic tension outdoor PVC membrane

COVER: 60% of area, PVC coating 720-900gr / m2 (Color: dark green), PVC clear window 625g / m2 tinted UV resistant window 30% of the surface. Lockable door with zippers, mosquito net.

Membranes used to cover CRYSTAL DOMES structures are manufactured from highest quality materials from renowned European producers. All membranes are certified and their quality and performance are in line with European standards. All fabrics have certifications to fire-retardancy NFP 92507: M2 ; DIN 4102: B1; EN 13501-1: B-s2-d0, BS 7837.

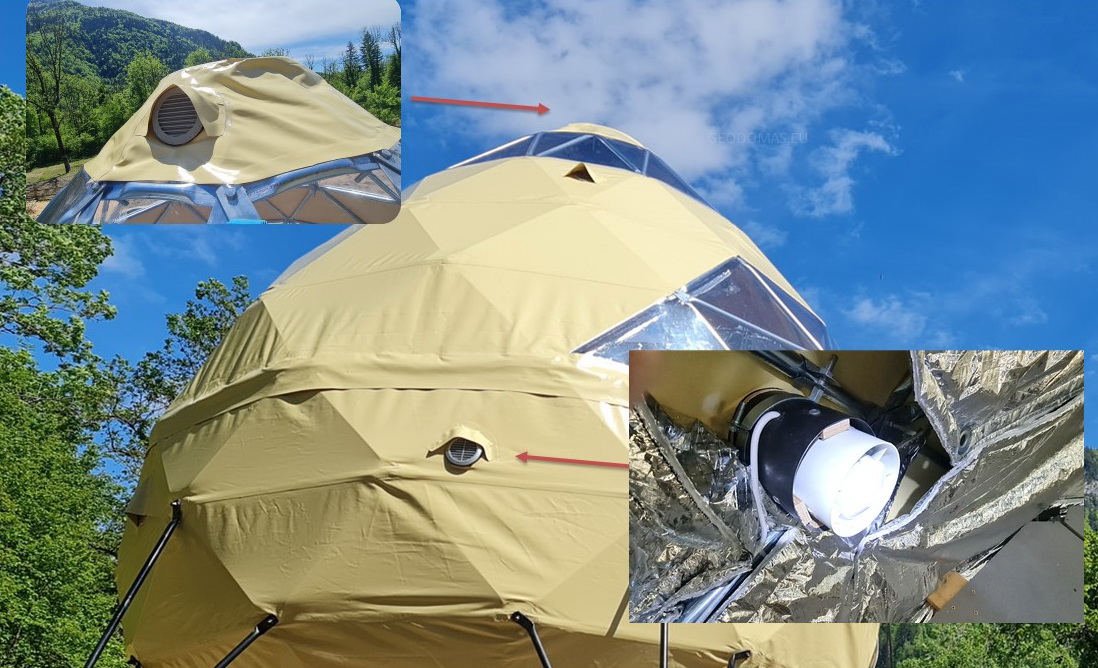

Mechanical ventilation system

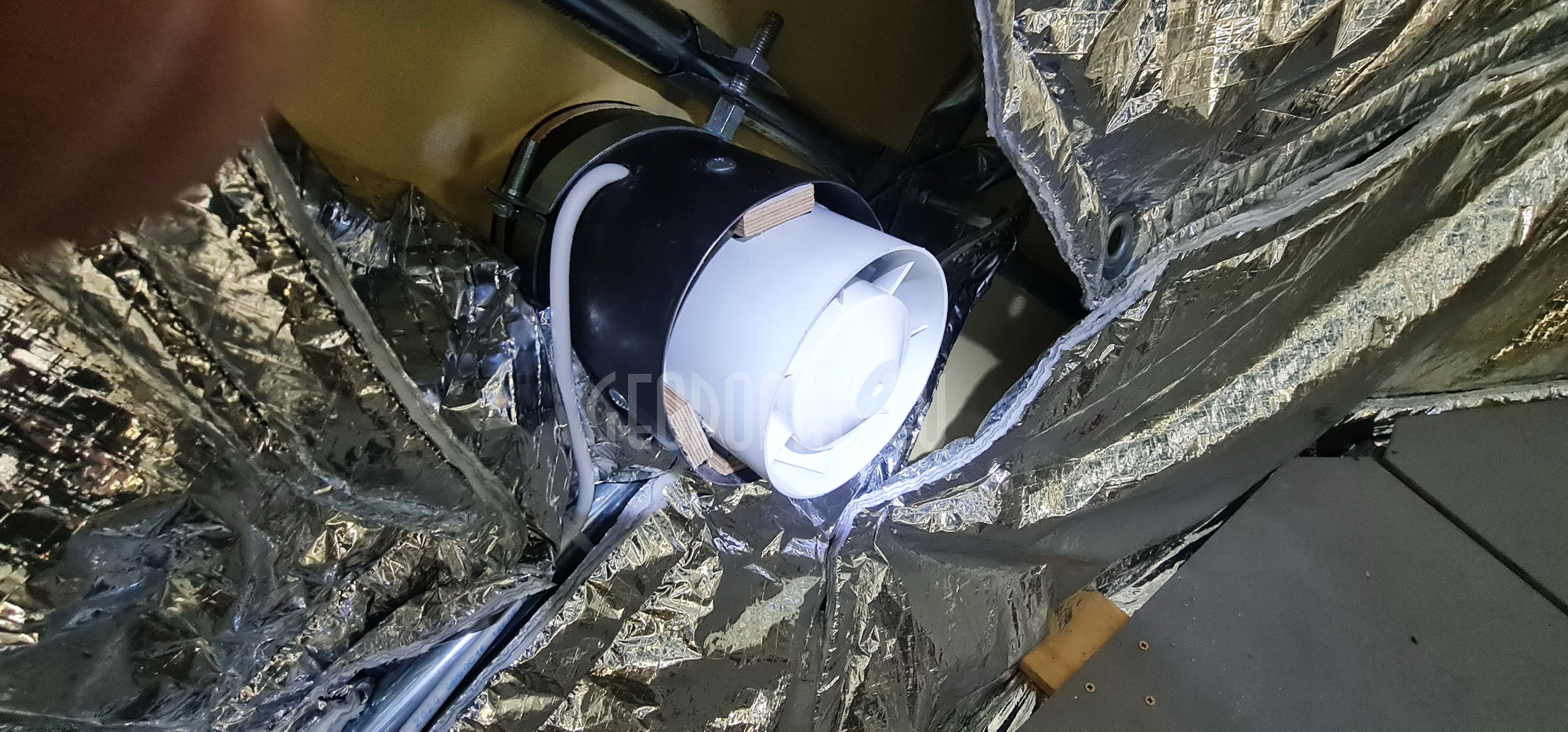

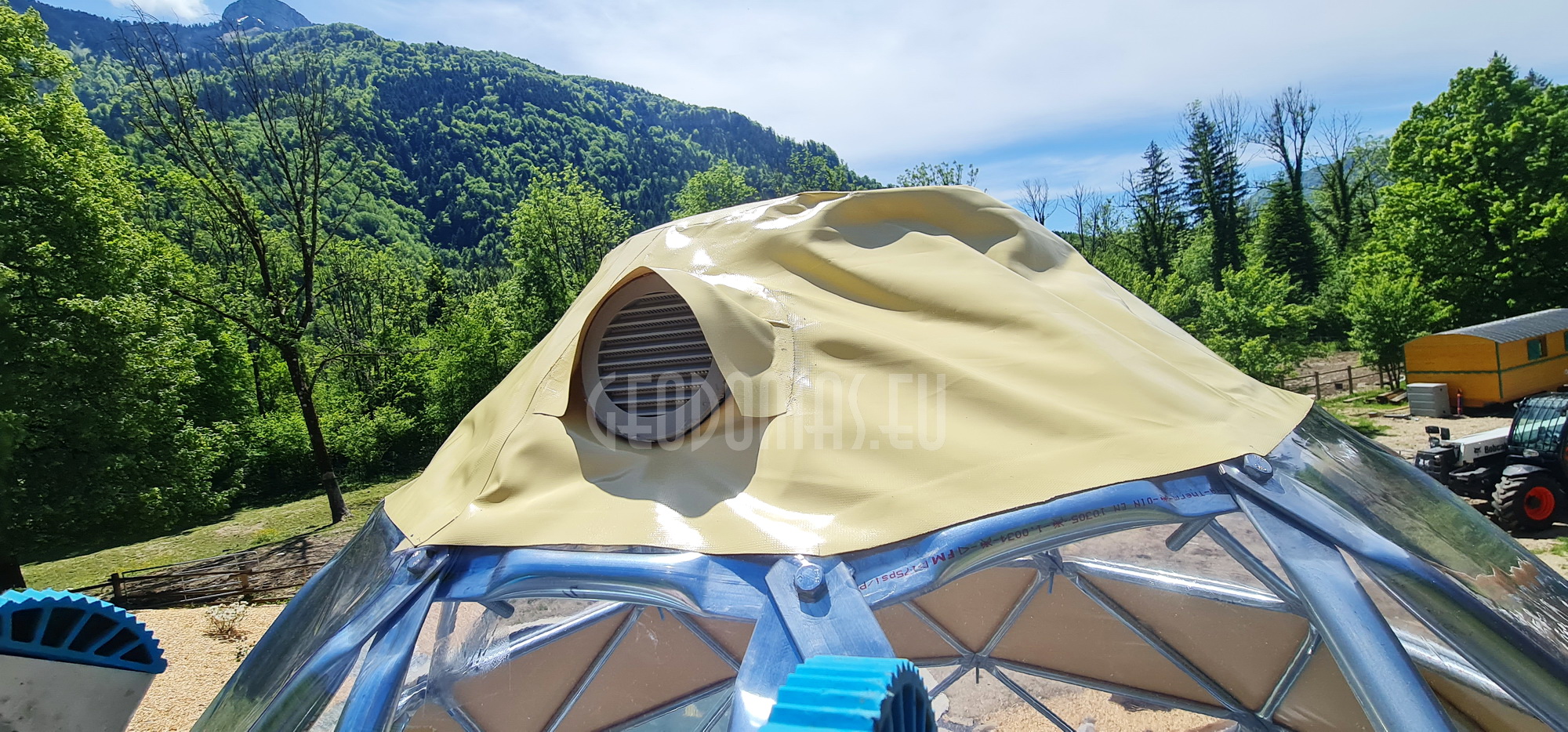

VENTILIATION : Mechanical Ventilation system. Electric 220V ventilation turbines Ø100mm x 3pcs.

All chambers of multilayer wall have special openings for condensate and air ventilation.
Gravity ventilation system performs all basic functions, but is not the main one.

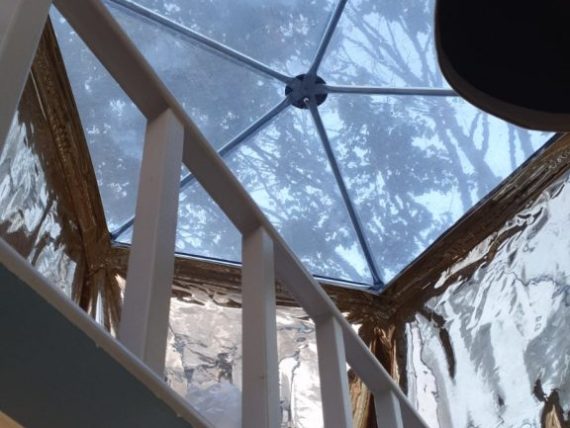

Outdoor panoramic window, plastic membrane

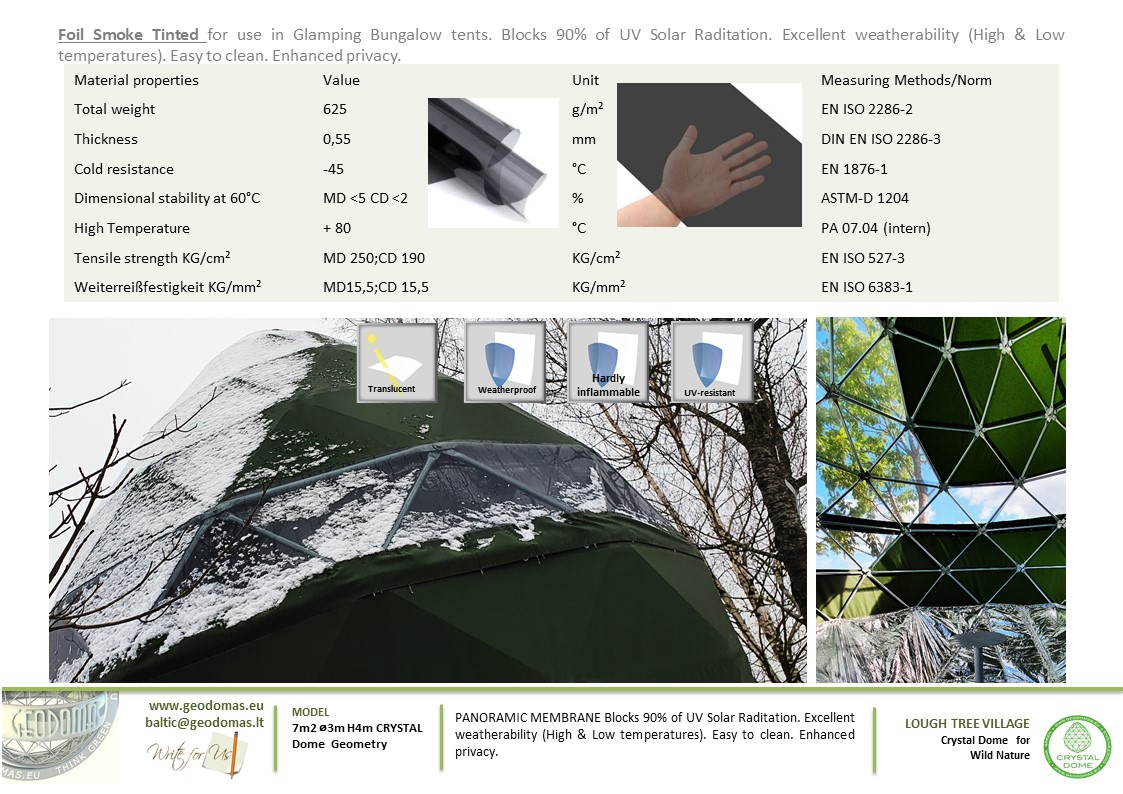

Foil PVC Window membrane Tinted for use in Glamping. Transparent PVC fabric, which perfectly transmits sunlight and illuminates the entire dome.

• Temperature range: from -40 ° C to +80 ° C;
• Blocks 90% of UV Solar Radiation. Excellent weatherability (High & Low temperatures);
• Easy to clean;
• Enhanced privacy;

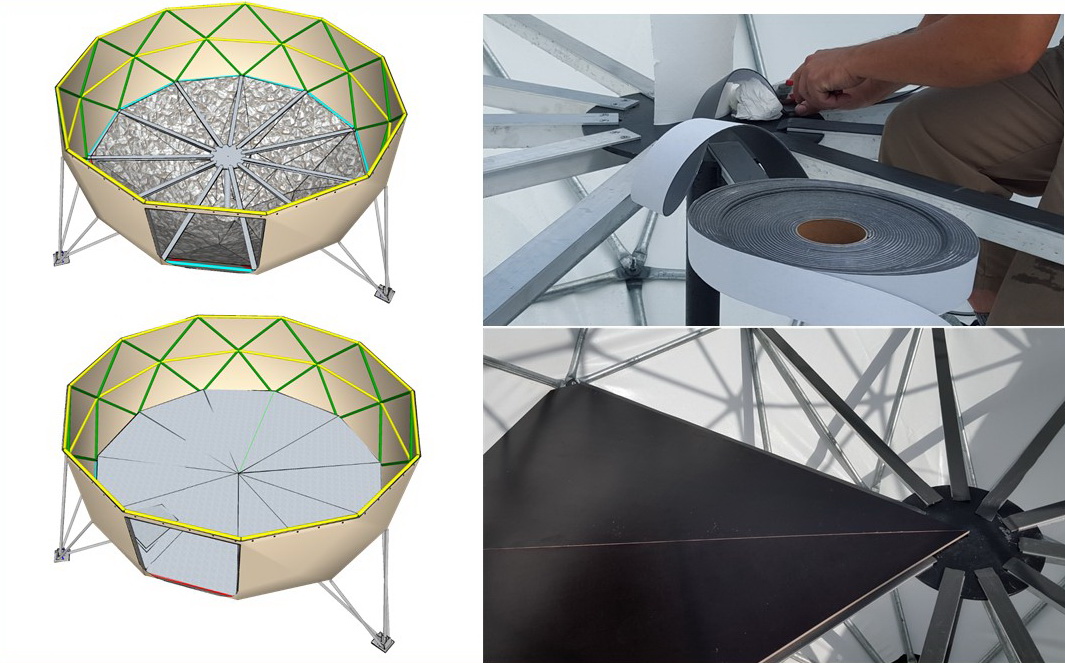

STANDARD FLOOR SYSTEM

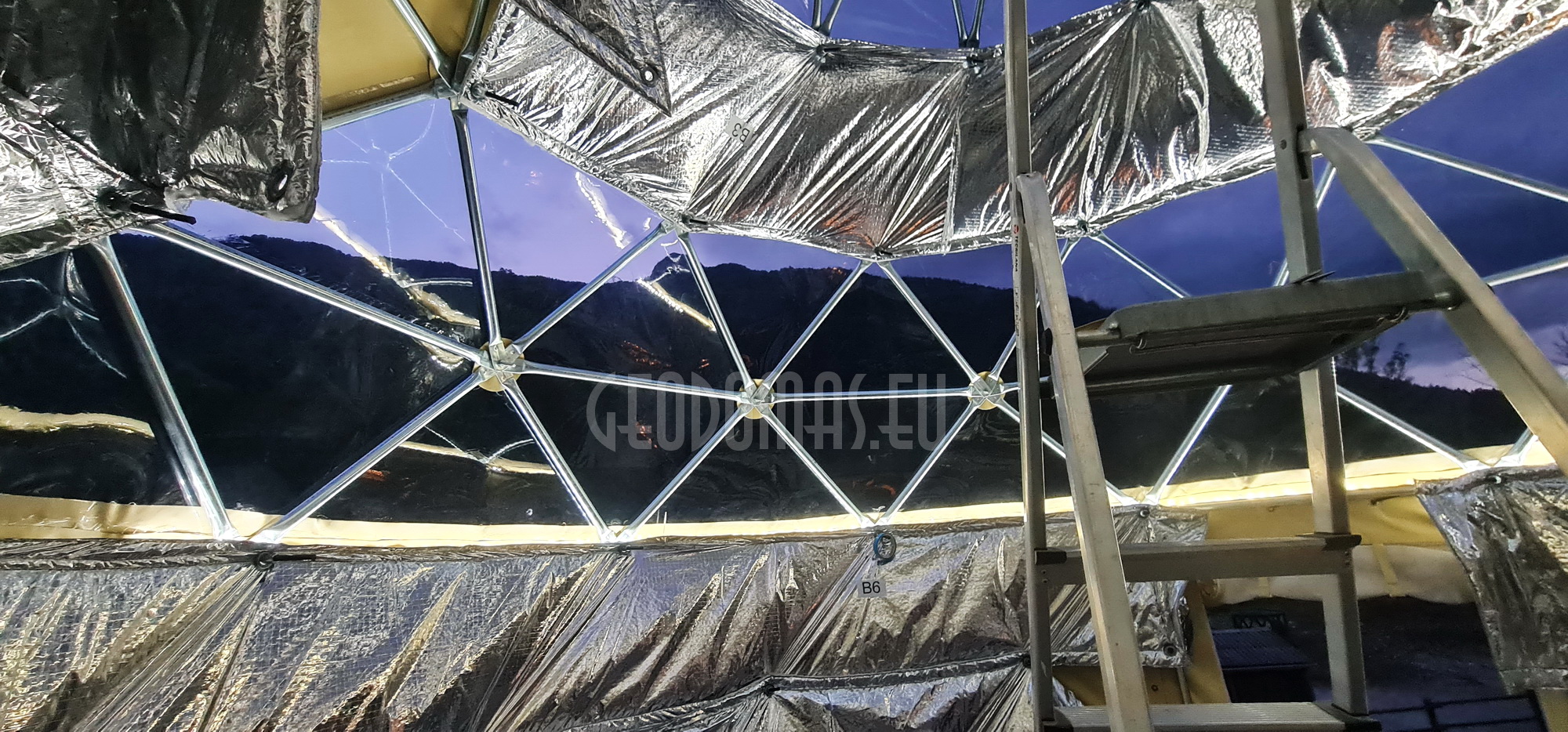

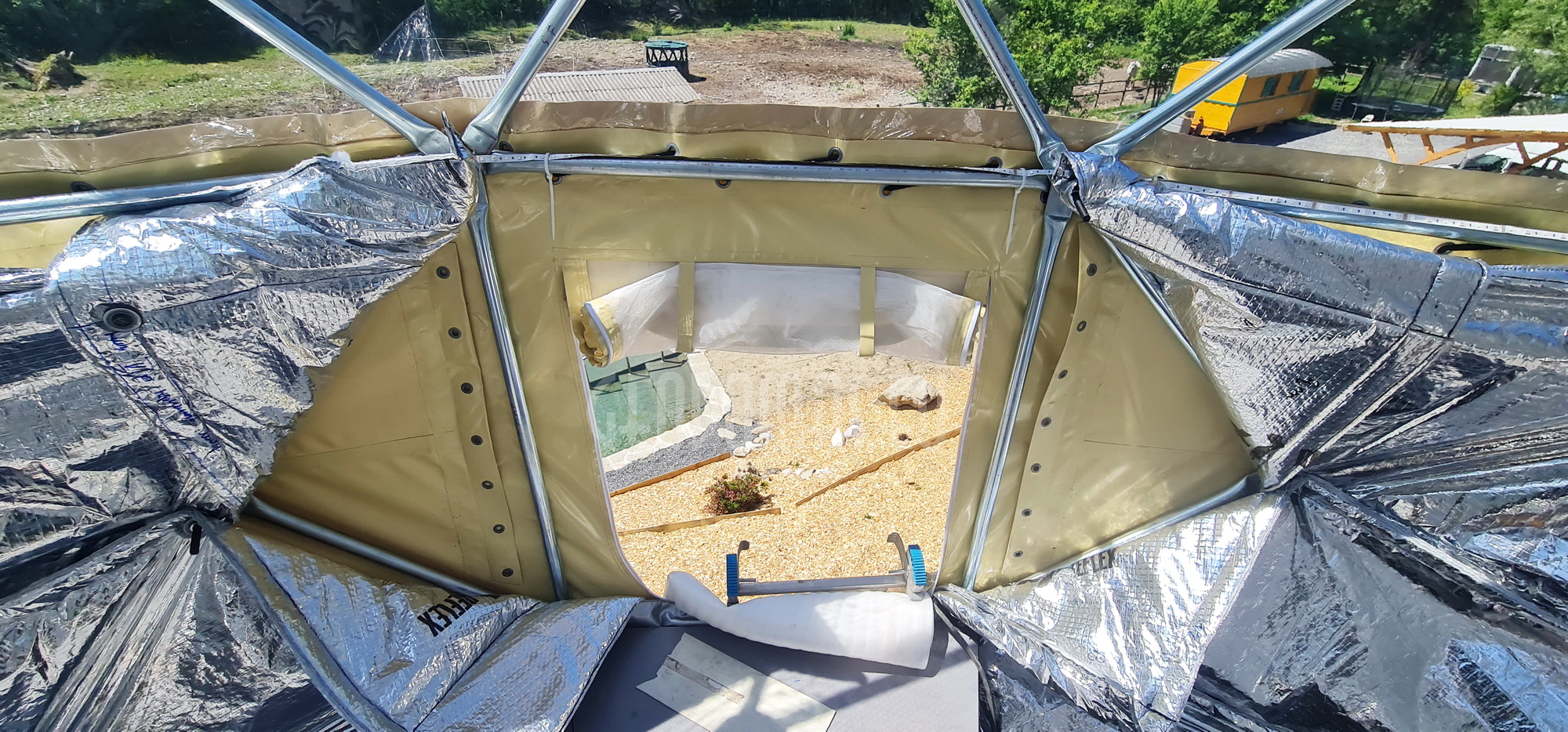

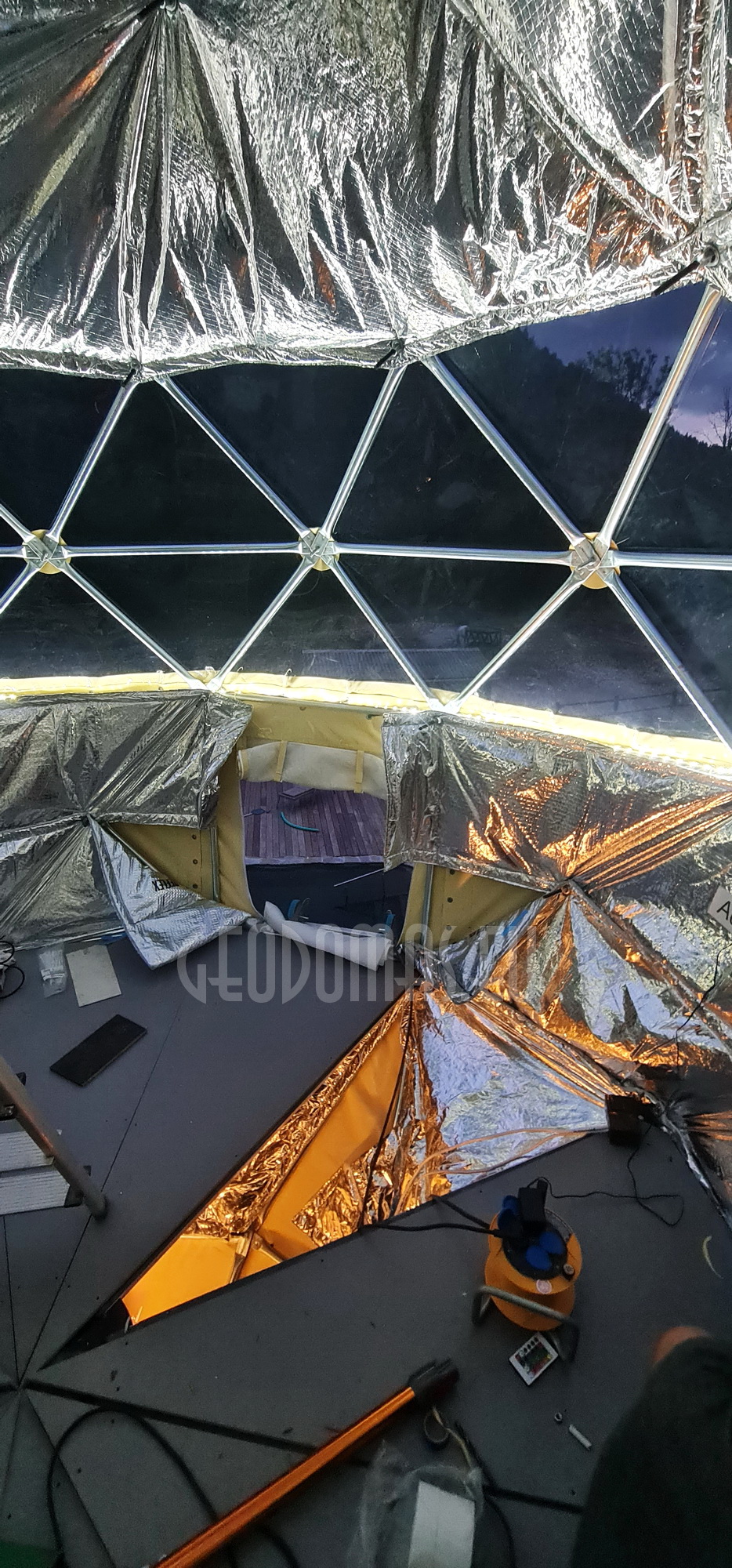

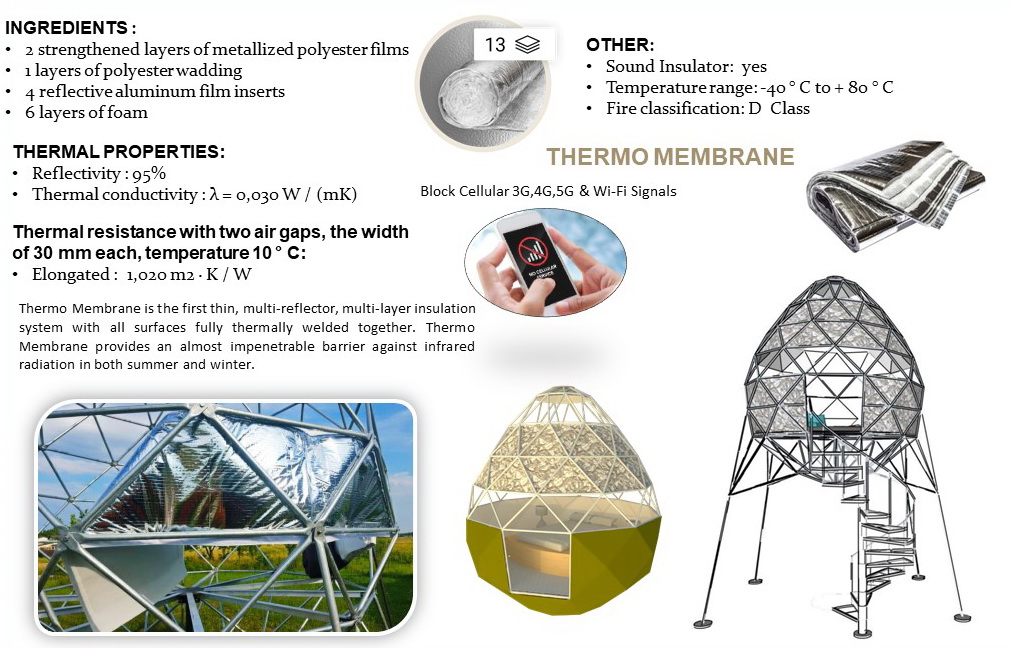

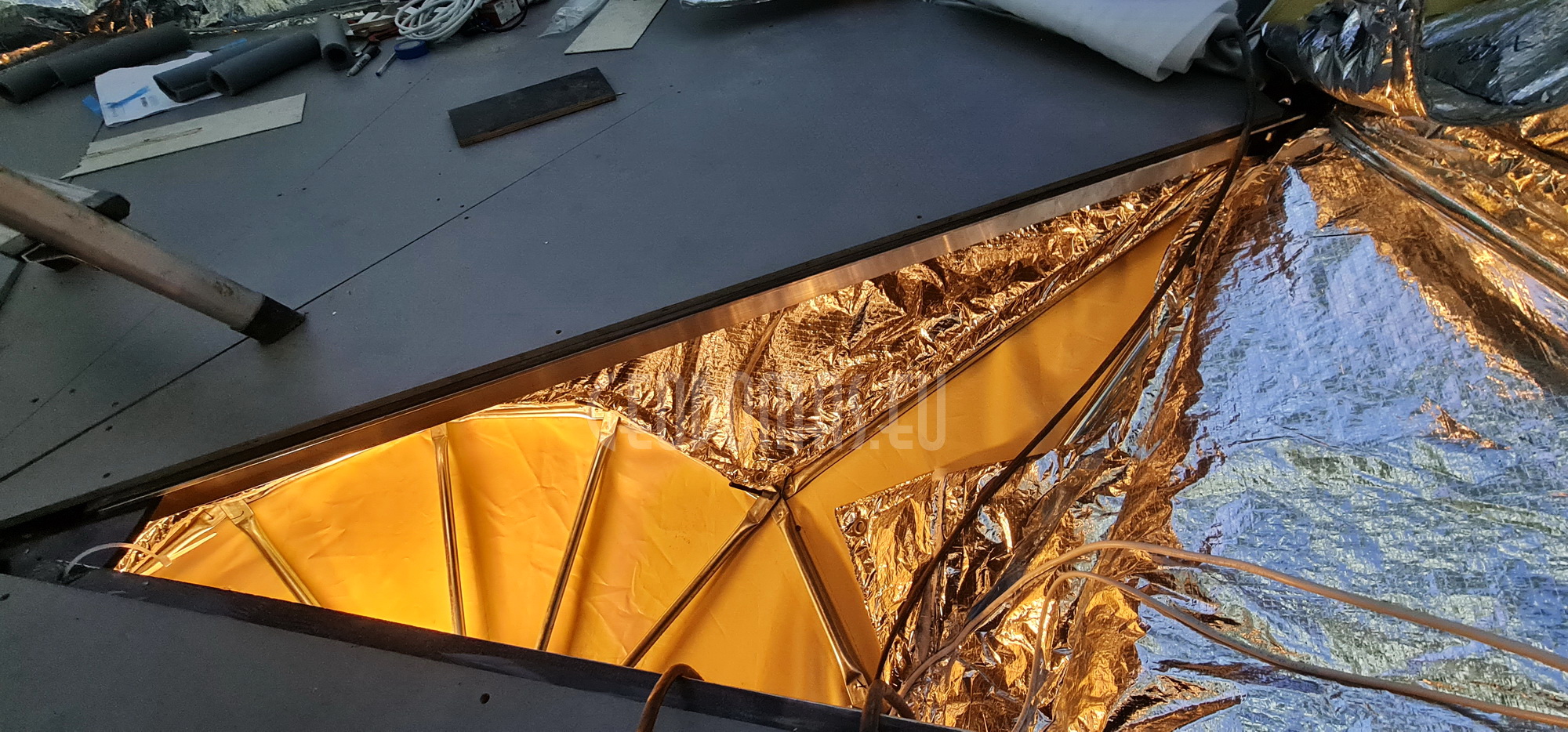

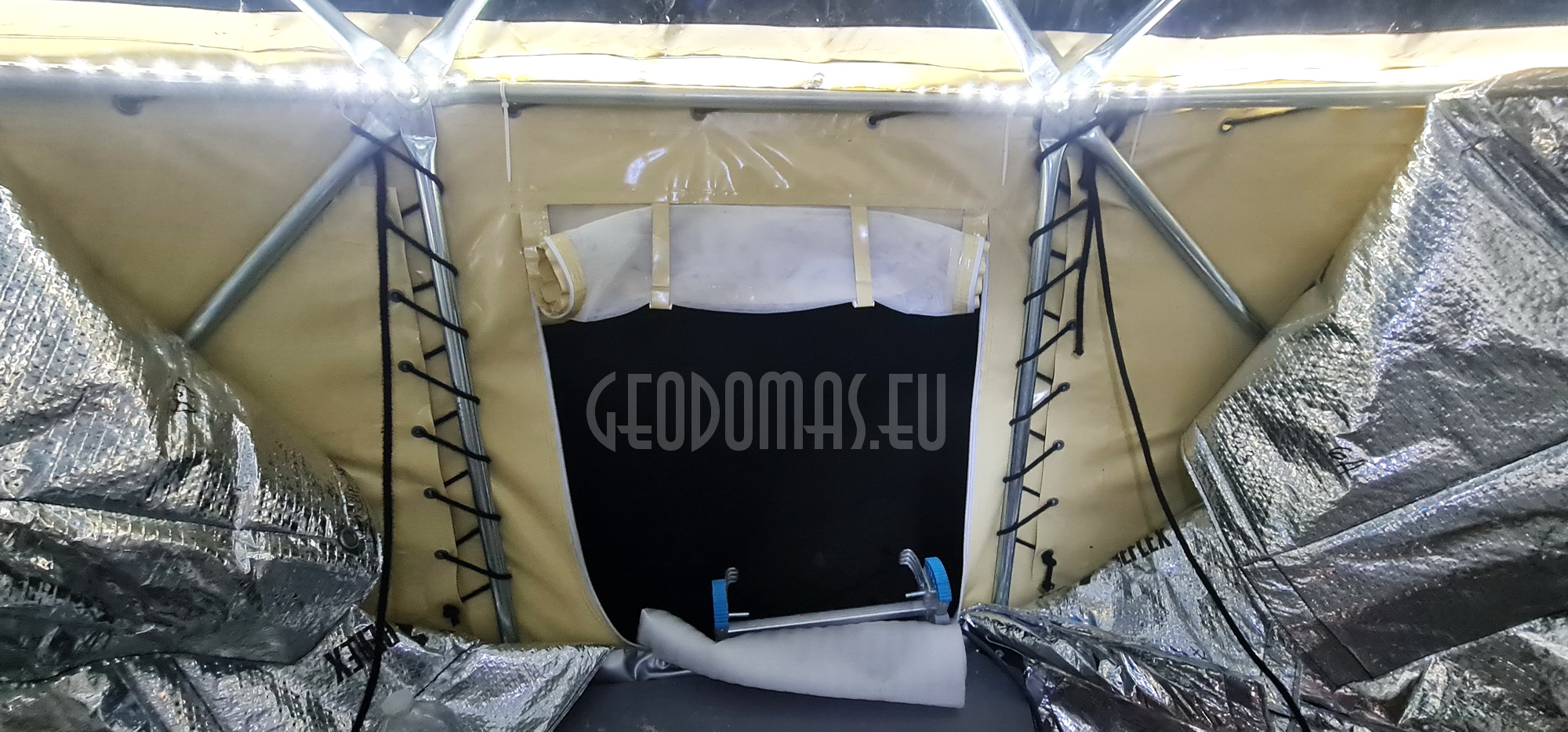

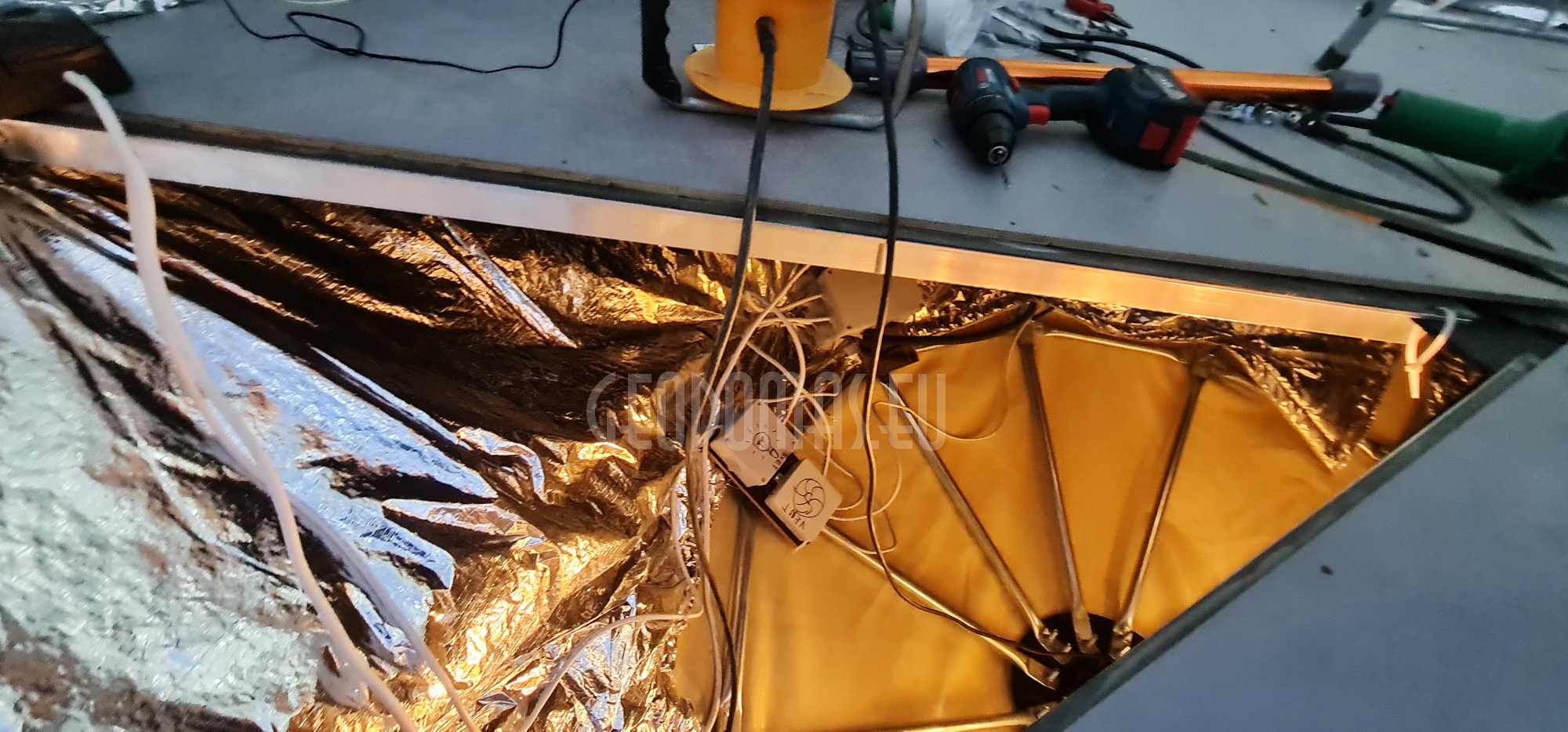

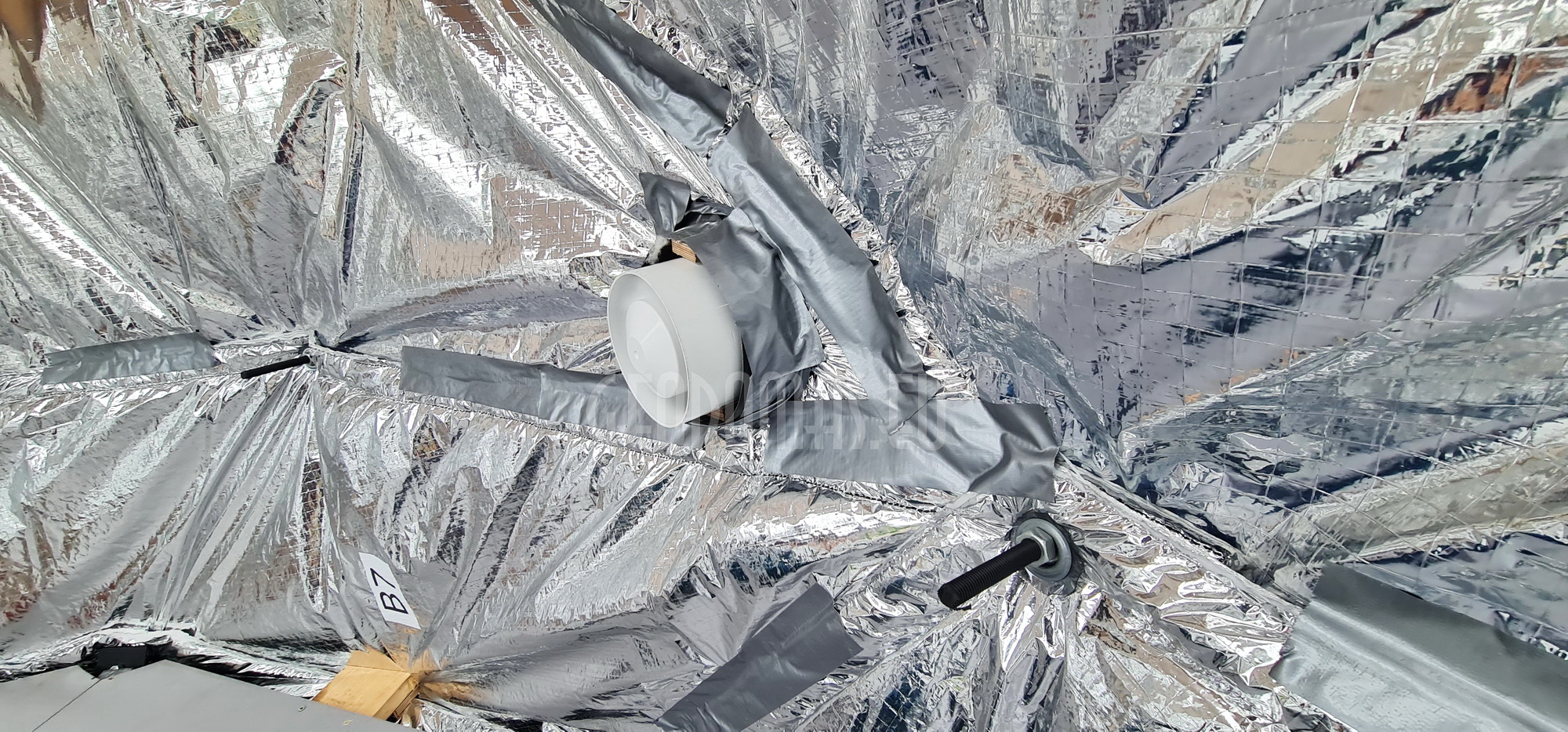

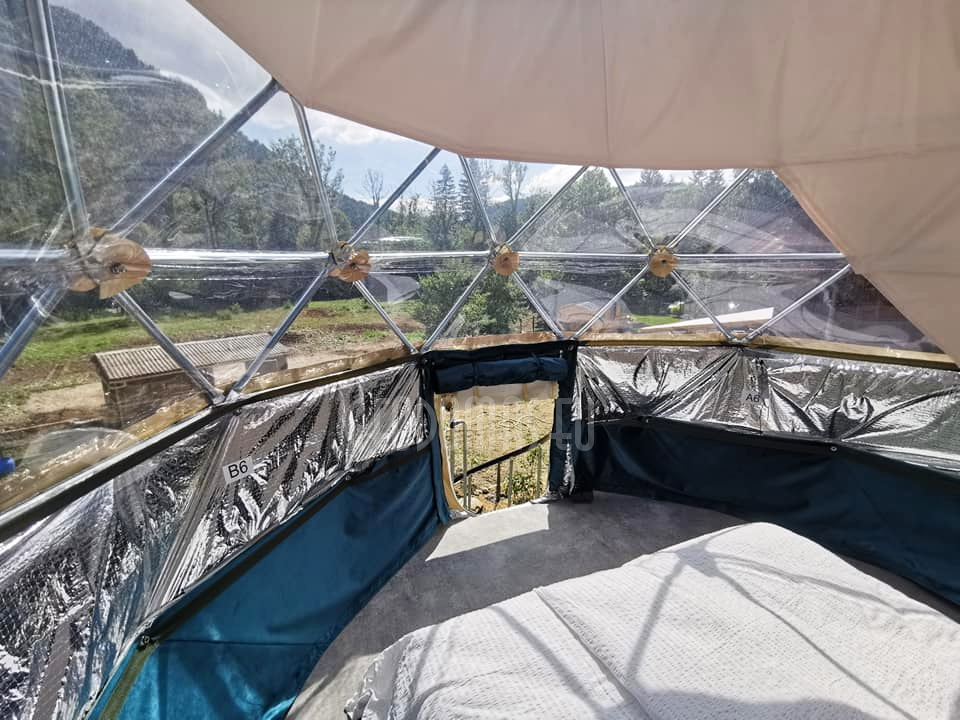

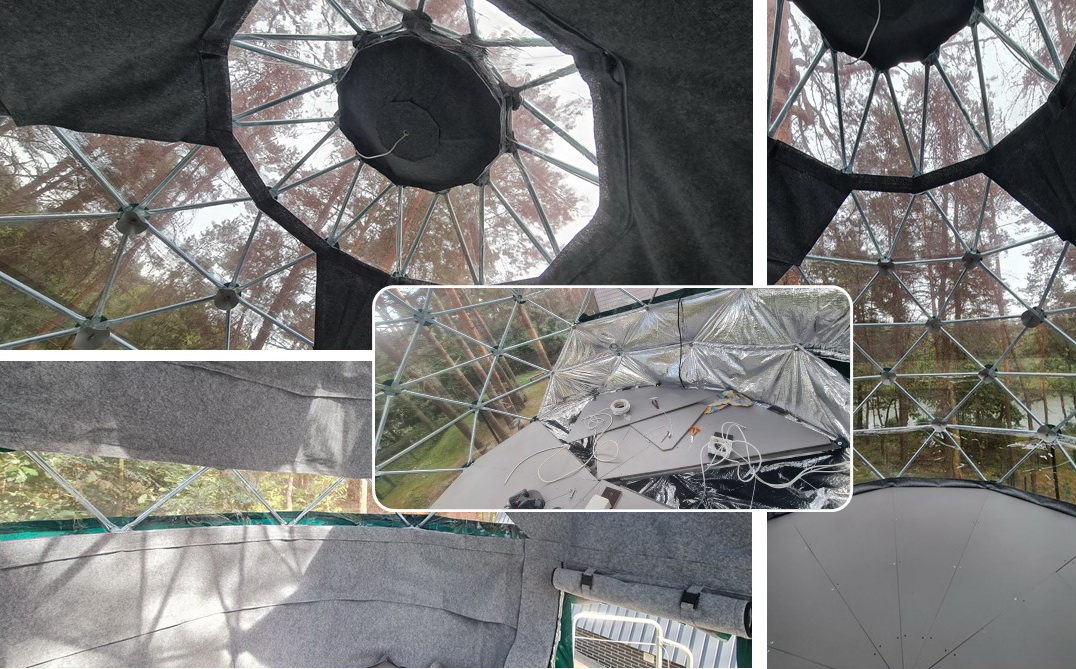

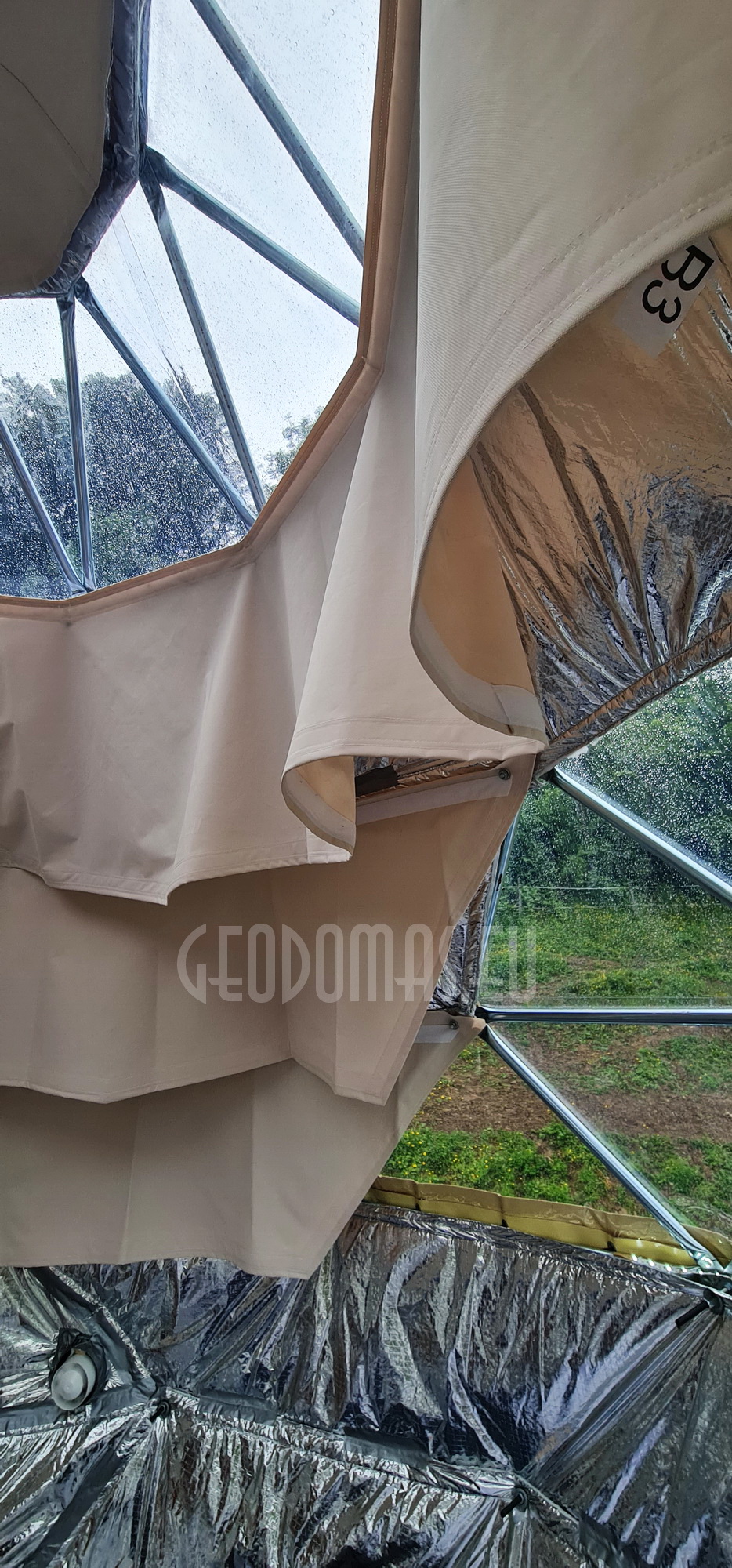

Multilayered thermal insulation of dome wall, with two 100cm chambers

It is thin, multi-reflector, multi-layer insulation system. Reflective thermo insulation material is produced using the technology that NASA has developed to protect the spacecrafts from extreme external factors (solar radiation and frost).

• Insulation saves energy because it reduces all types of heat: conduction, convection, radiation, heat, humidity infiltration;
• Stability, insulation parameters in contrast to traditional insulating materials, there are no splits, material is continuous;
• Energy saving – insulation saves up to 30% of the energy for heating and cooling;
• Fast assembly – large rolls, simple system, combining consistent levels and flexibility of the material enables efficient assembly of the product in all conditions;
• THERMIC.PRO- resistant to chemicals, rodents and other pests, as well as most solvents that are used in construction;
• Reflectivity: 95%
• Thermal conductivity: λ = 0,030 W / (mK)
• Blocks Cellular 3G,4G,5G & WIFI Signals

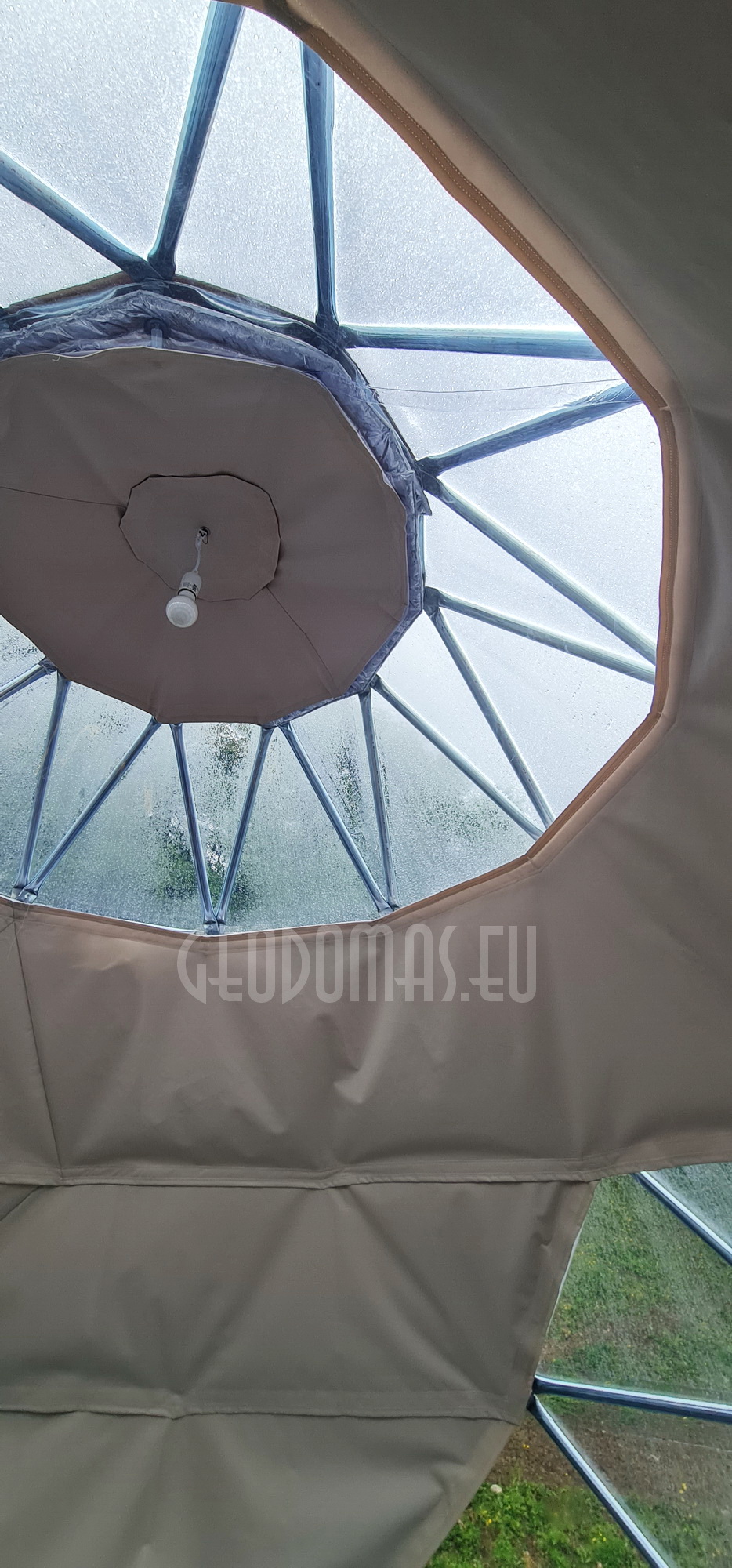

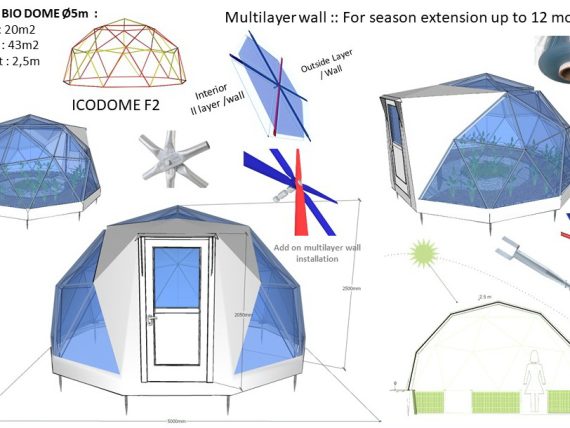

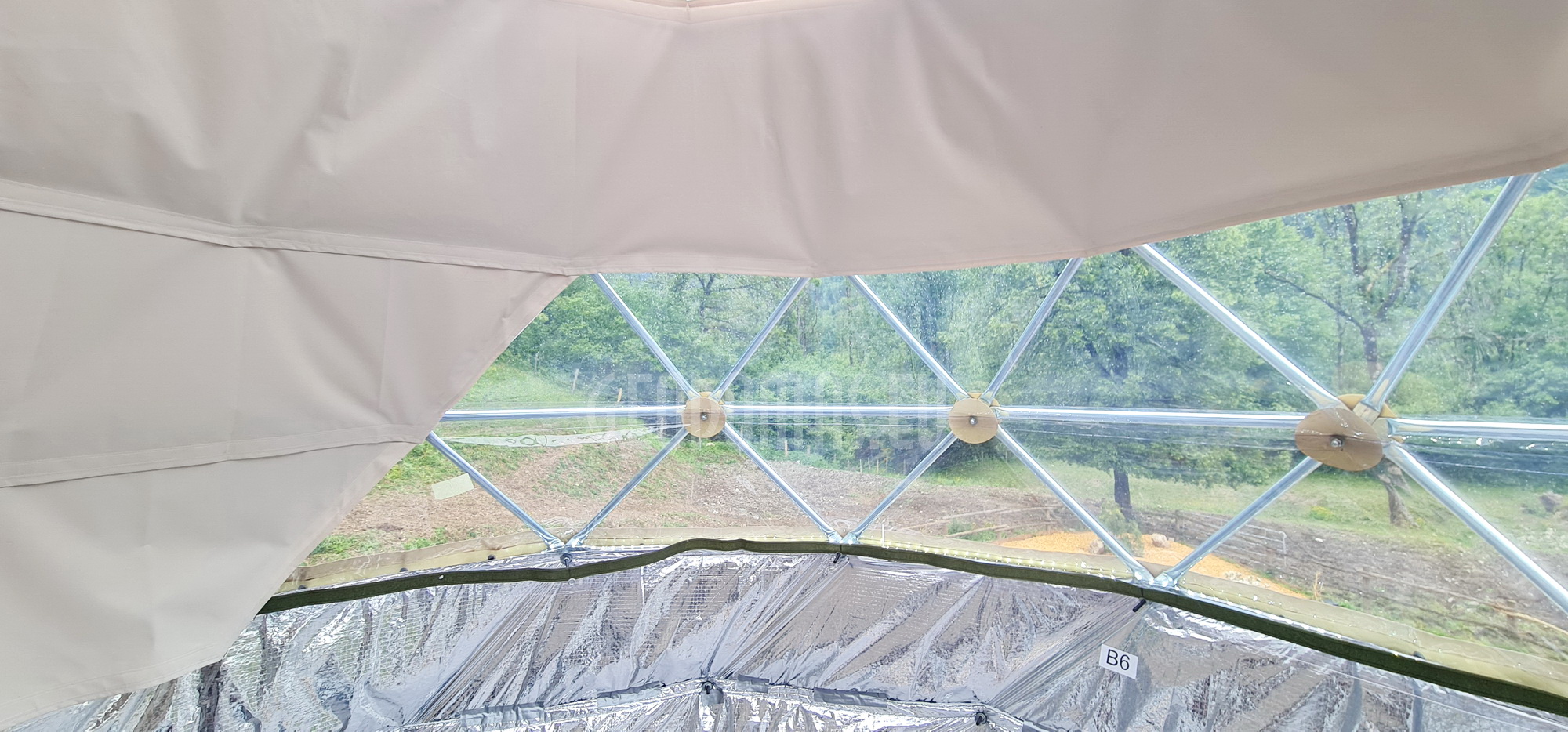

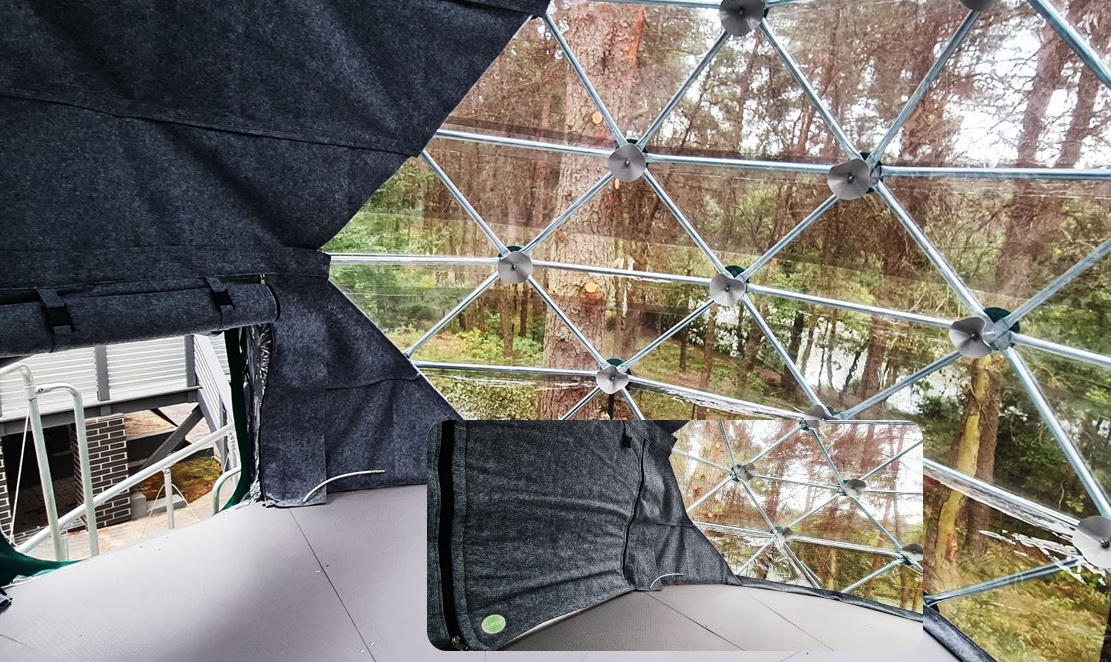

Multilayer wall internal window, -180mm air chamber.

It is 100% polyester with PVC cover 0,5mm. Extremly non-tear / hard wearing , Waterproof Extremely tear resistant heavy duty PVC Tarpaulin.

• Extremely non-tear / hard wearing;
• Waterproof Extremely tear resistant heavy duty PVC Tarpaulin;
